Smart Electronic Stethoscope
Advanced Digital Heart & Lung Monitoring
Download User Manual >
Free shipping on all orders over $199 in the US
1 Electronic Stethoscope
1 Wired Headphone
1 USB-C Cable
1 User Manual
1 Quick Start Guide
Introducing the
Smart Electronic Stethoscope

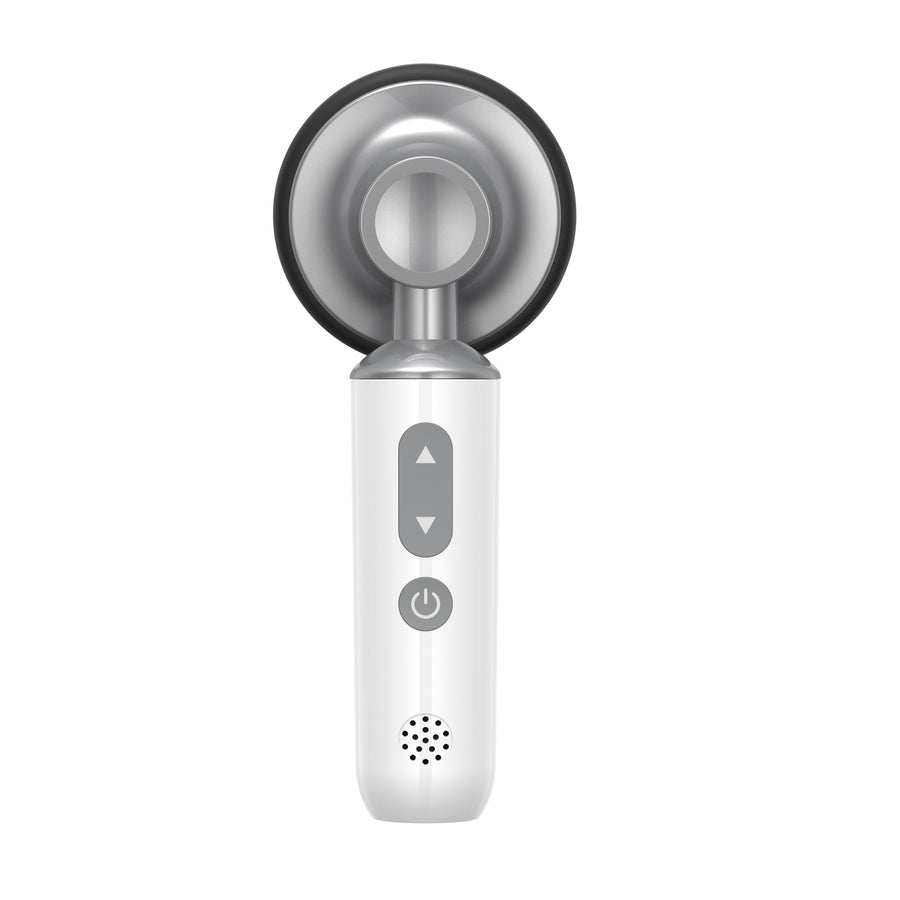

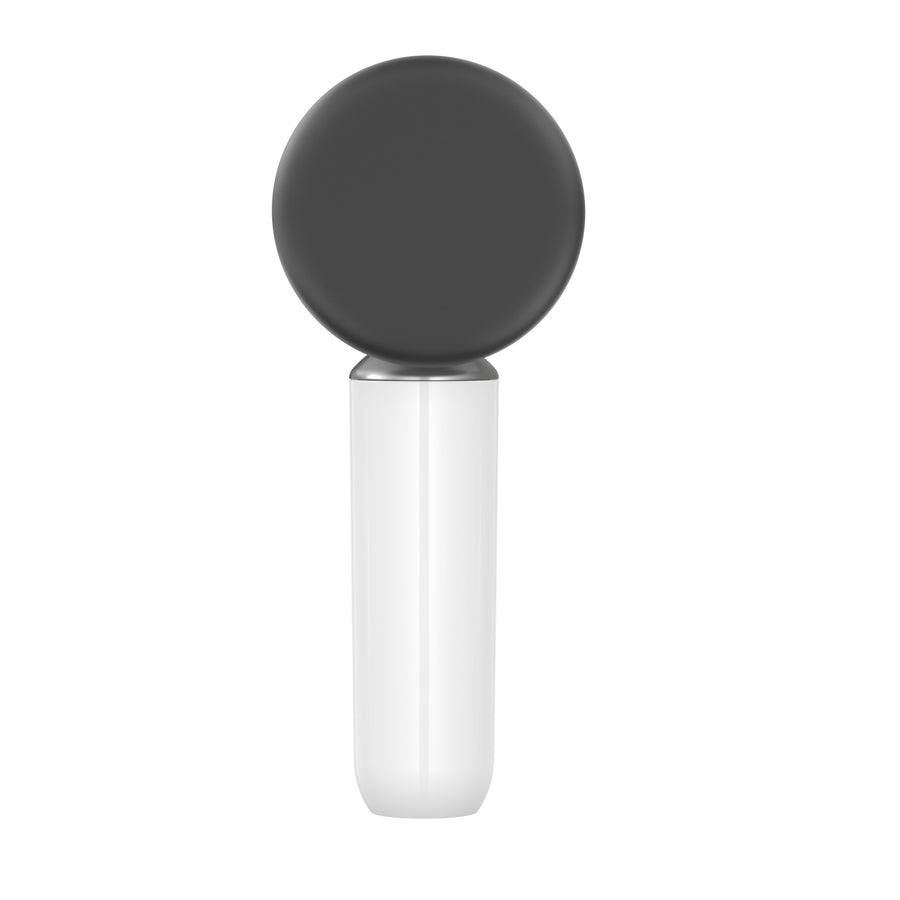

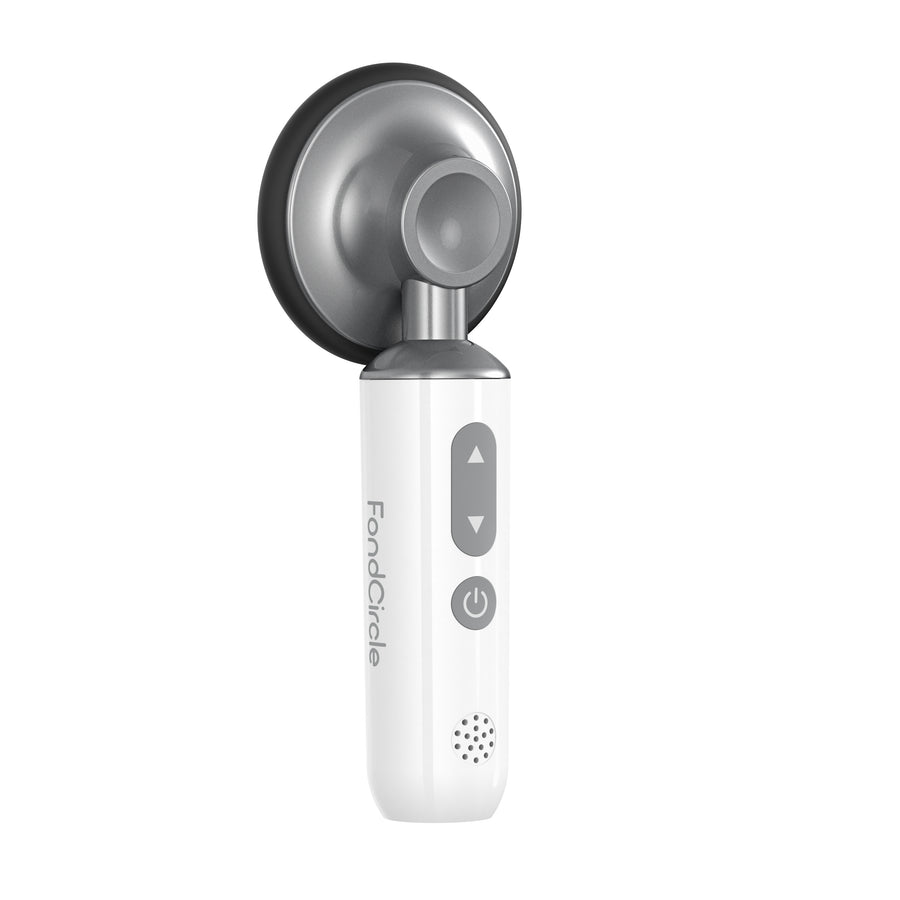

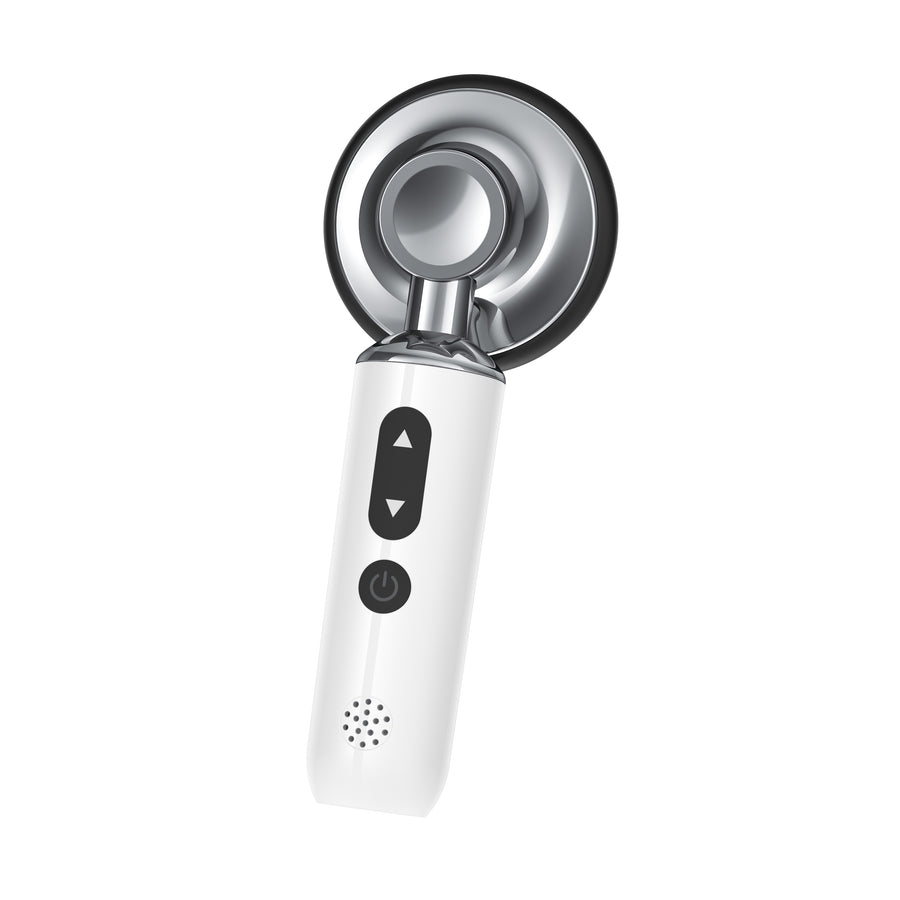

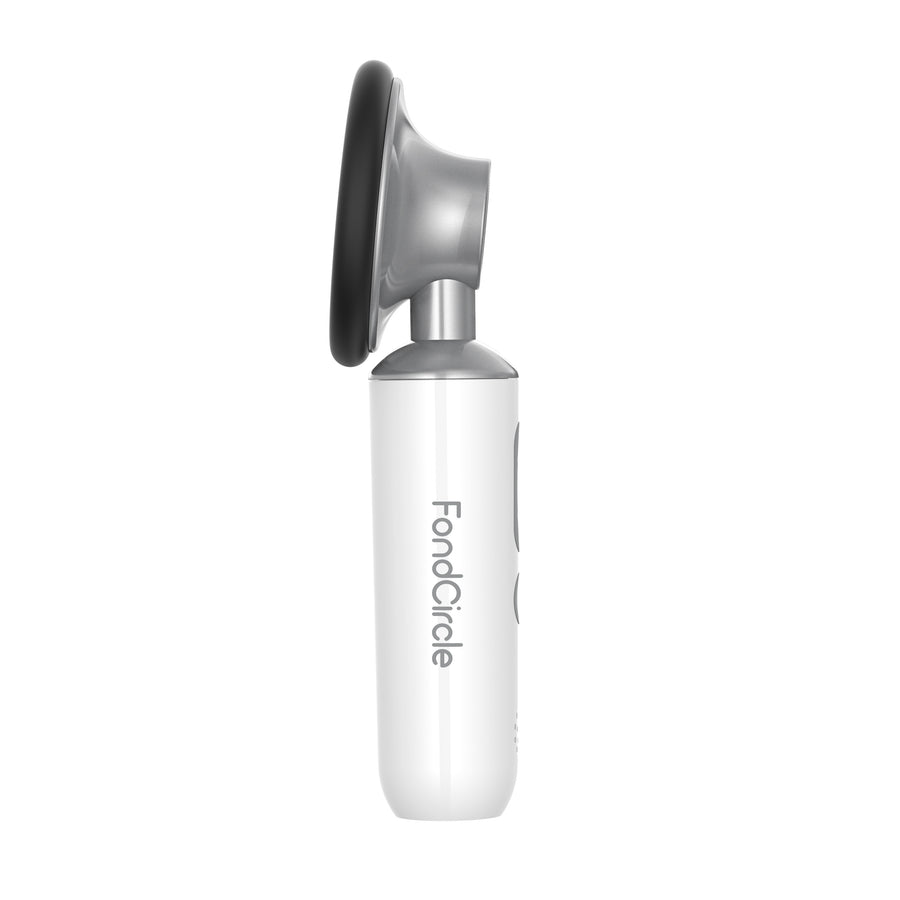

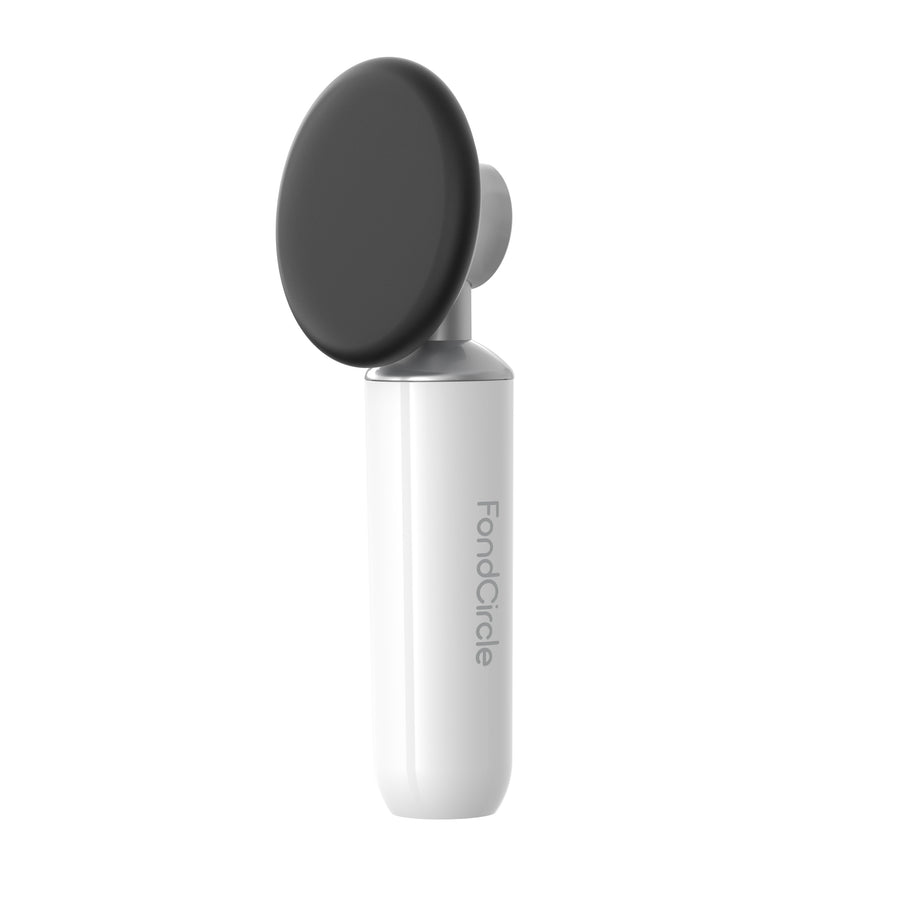

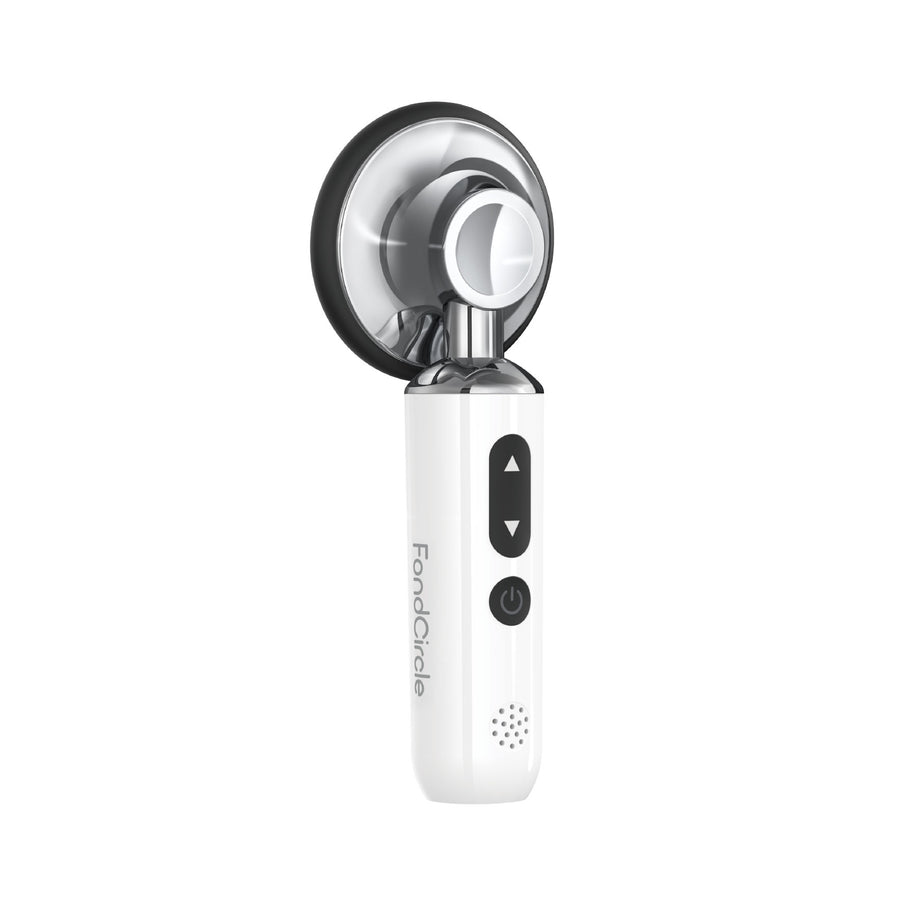

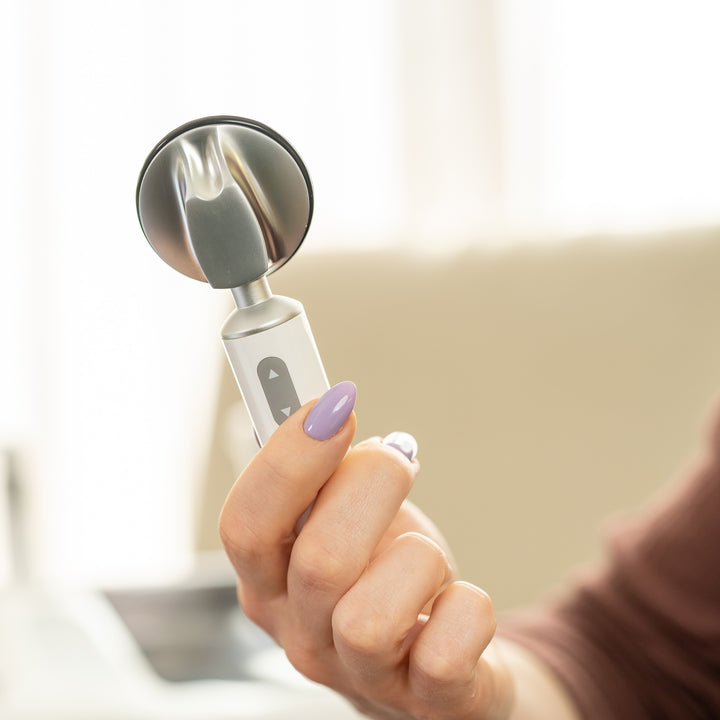

The FondCircle Smart Electronic Stethoscope is an innovative medical tool designed to collect, filter, and amplify heart and lung sounds with enhanced clarity and precision. Featuring a MEMS microphone and frequency range of 30-500 Hz, it captures high-quality auscultation sounds, making it ideal for healthcare professionals, telemedicine, and home monitoring.
Equipped with Bluetooth connectivity, it allows users to stream audio to mobile devices and tablets, enabling real-time analysis, recording, and sharing of heart and lung sounds. The built-in speaker and 3.9 mm headphone output provide multiple listening options for flexibility in different medical settings.
Powered by a rechargeable lithium-ion battery, the Smart Stethoscope offers long-lasting performance and is compatible with 100-240V power input for global use. Its compact and ergonomic design (116.2 mm x 47.3 mm x 29.5 mm) ensures comfortable handling, making it a must-have device for doctors, nurses, medical students, and individuals managing their own heart health.
ADVANCED SOUND COLLECTION & AMPLIFICATION
The FondCircle Smart Stethoscope uses a high-precision MEMS microphone to collect, filter, and amplify heart and lung sounds within a 30-500 Hz frequency range, ensuring clear and accurate auscultation for precise diagnostics.
BLUETOOTH CONNECTIVITY & AUDIO OUTPUT

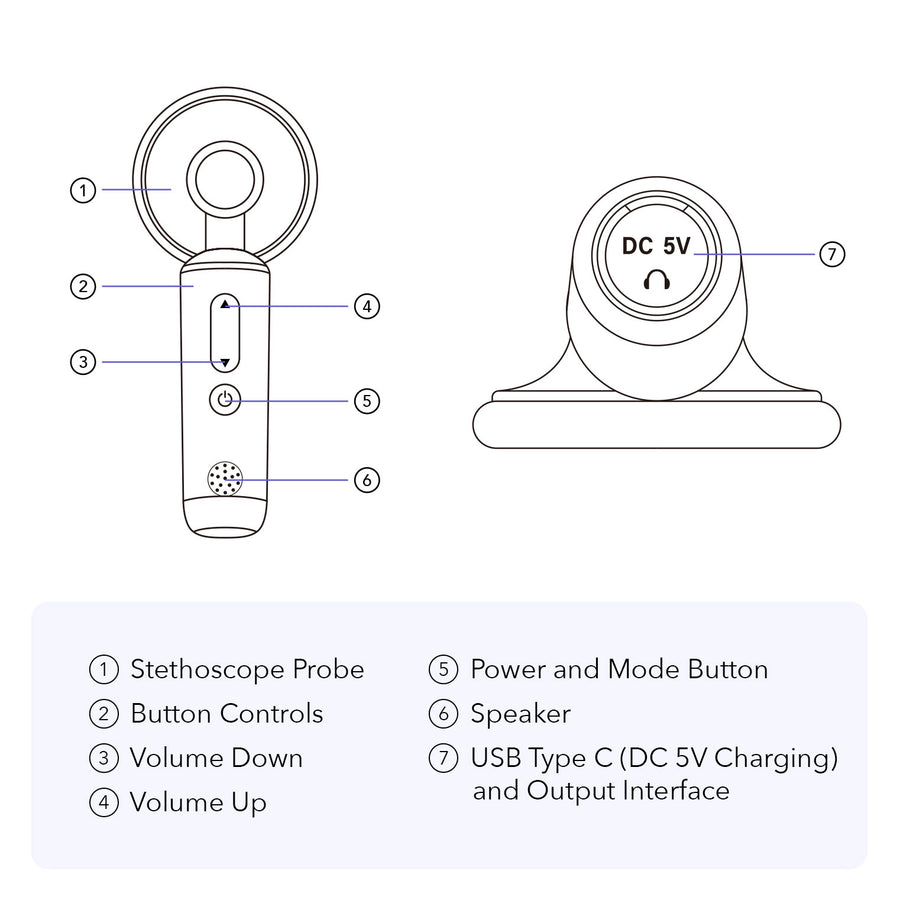

Seamlessly connects to mobile devices and tablets via Bluetooth, allowing users to stream, record, and analyze sounds in real time. It also features a built-in speaker and a 3.9 mm headphone output for flexible listening options.
RECHARGEABLE & LONG-LASTING BATTERY
Powered by a rechargeable lithium-ion battery, the Smart Stethoscope provides extended use on a single charge. It supports 100-240V input, making it ideal for both clinical and remote healthcare settings.
Key Benefits; How It Works; Telehealth Integration
• Dimensions: 116.2 mm (L) x 47.3 mm (W) x 29.5 mm (H)
• Headphone Length: 120 mm
• Single Input Method: MEMS microphone
• Frequency Response Range:
- Cardiac Mode (Heart): 30-500 Hz
- Pulmonary (Lungs): 50-1000 Hz
• Power Source: Rechargeable lithium-ion battery
• Data Transfer: Mobile devices and tablets
• Wireless Technology: Bluetooth
• Operating Conditions:
- Temperature: 5-30°C (41-86ºF)
- Humidity: 0-80% RH
- Atmospheric Pressure: 86-106 kPa
• Storage and Transportation Conditions:
- Temperature: 5-40ºC (41-104°F)
- Humidity: 0-80% RH
- Atmospheric Pressure: 86-106 kPa
• Service Life: 5 years
• Adapter:
- Input: 100-240V, 50/60 Hz
- Output: 5V-1A/2A
